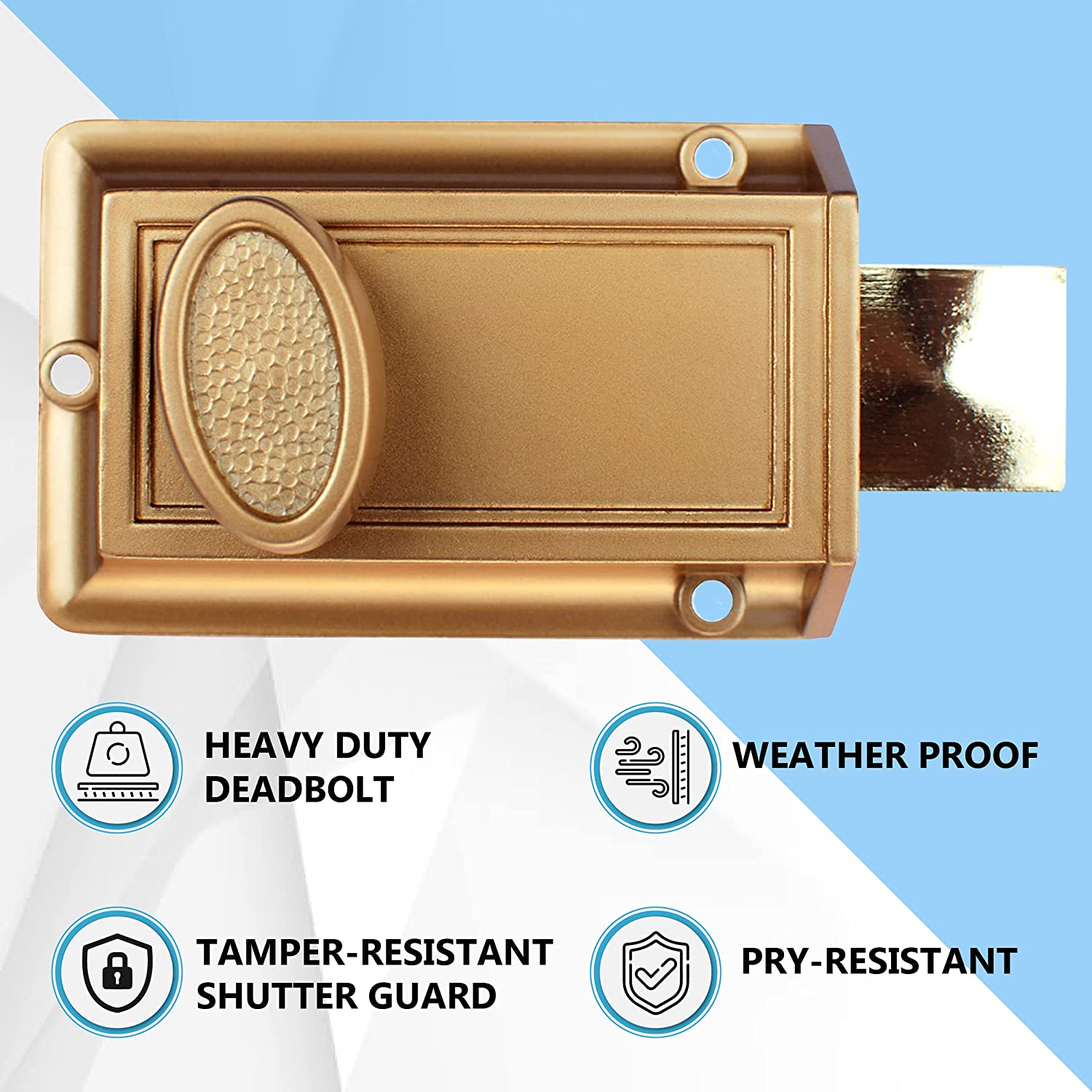

NUSET Kwikset Keyed Night Dead Bolt Lock, Bronze

Surface mount single rim cylinder dead bolt lock painted in bronze. Night bolt is operated with a key from the exterior of the home and a thumb turn from the interior.

• Hardened steel throw bolt for cut resistance
• Zinc alloy die casting steel casing resists tempering and weathering
• Brass case thumb turn inside for easy locking and unlocking
• 5 Pin Kwikset keyed cylinder for added pick resistance
• Removable and rekeyable cyliner can be custom made to specific keycode
• Fits door thickness between 1-3/8" to 2-5/8"
• 2 Keys, strike plate and mounting screws included
• Available in keyed alike, keyed different or master keyed

Door Preparation

• Door Thickness: Standard (1-3/8" to 2-5/8")
• Cross Bore: 1-1/4" Diameter
• Backset: Standard (2-3/8")

Mortise in Door Jamb

• Width (Thickness) : 3/16"
• Height: 2-1/2"
• Depth: 5/8"
• Corners: Square

Locking Unit Dimension:

• Width: 3-3/8"
• Height: 2-7/16"
• Depth: 1-1/8"

Strike Dimension:

• Width: 1-1/8"
• Height: 2-1/2"
• Depth: 1-5/8"

Thumb Turn Dimension:

• Width: 3/4"
• Height: 15/16"
• Depth (from Main Unit): 5/8"
